BT Shrink Chuck, 3 °, Regular, Refrigerante

Name: BT Shrink Chuck, 3 °, Regular, Refrigerante
Brand: Shandong Jinjie Machinery Co., Ltd.

3 ° slim Integrado chucks retráteis com narizes finos podem acessar perto de paredes e evitar problemas de interferência. Pode selecionar o suporte ideal para sua forma de peça de trabalho específica e condições de usinagem, grande diâmetro é melhor para usinagem de serviço pesado, e pequeno diâmetro é melhor para micro-usinagem.

1, variedade de tamanho rico.

2, raiz espessa e nariz magro.

3, aplicado tanto usinagem de serviço pesado e micro usinagem.

4, com um canal de refrigerante.

Compre BT Shrink Chuck, 3 °, Regular, Refrigerante 



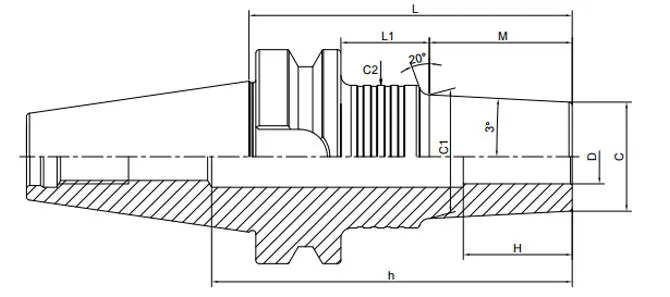

DESENHO TÉCNICO DE REOLANTE REGULAR DE BT SHRINK CHUCK 3 °

SHRINK FIT CHUCK

VANTAGENS

CARACTERÍSTICAS

PRINCÍPIO DE TRABALHO

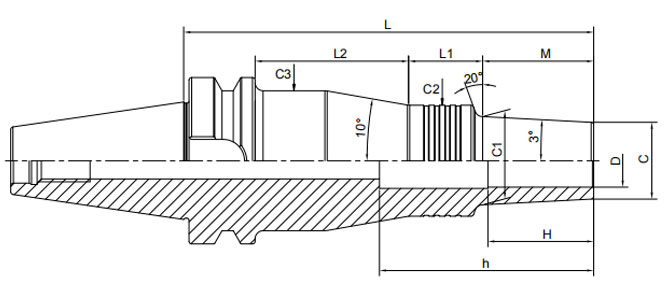

ESPECIFICAÇÃO DE BT SHRINK CHUCK 3 ° REGULAR COOLANTE

<Td class = "et8" x:num = "56">56

Tamanho	D	C	L	M	L1	C1	C2	H	H
BT40-SFFB3-75-M22	3	9,5	75	22	26	11.8	25	9	110
BT40-SFFB3-95-M42	3	9,5	95	42	26	13,9	26	9	130
BT40-SFFB3-105-M22	3	9,5	105	22	56	11.8	26	9	140
BT40-SFFB3-120-M67	3	9,5	120	67	26	16.5	26	9	155
BT40-SFFB3-125-M42	3	9,5	125	42	56	13,9	25	9	160
BT40-SFFB3-150-M67	3	9,5	150	67	56	16.5	26	9	185

BT40-SFFB4-75-M22	4	12	75	22	26	14.3	26	12	110
BT40-SFFB4-95-M42	4	12	95	42	26	16.4	25	12	130
BT40-SFFB4-105-M22	4	12	105	22	56	14.3	25	12	140
	4	12	120	67	26	19	25	12	155
BT40-SFFB4-125-M42	4	12	125	42	56	16.4	26	12	160
BT40-SFFB4-150-M67	4	12	150	67	56	19	26	12	185

BT40-SFFB6-75-M22	6	14	75	22	26	16.3	32	18	110
BT40-SFFB6-95-M42	6	14	95	42	26	18,4	32	18	130
BT40-SFFB6-105-M22	6	14	105	22	56	16.3	32	18	140
BT40-SFFB6-120-M67	6	14	120	67	26	21	36	18	155
BT40-SFFB6-125-M42	6	14	125	42	56	18,4	32	18	160
BT40-SFFB6-150-M67	6	14	150	67	56	21	32	18	185

BT40-SFFB8-75-M22	8	18	75	22	26	20.3	36	24	110
BT40-SFFB8-95-M42	8	18		42	26	22.4	32	24	130
BT40-SFFB8-105-M22	8	18	105	22	56	20.3	36	24	140
BT40-SFFB8-120-M67	8	18	120	67	26	25	32	24	155
BT40-SFFB8-125-M42	8	18	125	42	56	22.4	36	24	160
BT40-SFFB8-150-M67	8	18	150	67	56	25	32	24	185

BT40-SFFB10-75-M22	10	22	75	22	26	24.3	32	30	110
BT40-SFFB10-95-M42	10	22	95	42	26	26,4	32	30	130
BT40-SFFB10-105-M22	10	22	105	22	56	24.3	32	30	140
BT40-SFFB10-120-M67	10	22	120	67	26	29	36	30	155
BT40-SFFB10-125-M42	10	22	125	42	56	26,4	36	30	160
BT40-SFFB10-150-M67	10	22	150	67	56	29	42	30	185

BT40-SFFB12-75-M22	12	26	75	22	26	28,3	50	30	85
BT40-SFFB12-95-M42	12	26	95	42	26	30,4	42	30	105
BT40-SFFB12-105-M22	12	26	105	22	56	28,3	42	30	115
BT40-SFFB12-120-M67	12	26	120	67	26	33	50	30	130
BT40-SFFB12-125-M42	12	26	125	42	56	30,4	50	30	135
BT40-SFFB12-150-M67	12	26	150	67	56	33	50	30	160
BT40-SFFB12-155-M42	12	26	155	42	86	30,4	50	30	165
BT40-SFFB12-180-M67	12	26	180	67	86	33	50	30	190

BT40-SFFB16-75-M22	16	32	75	22	26	34.3	50	32	85
BT40-SFFB16-95-M42	16	32	95	42	26	36,4	50	32	105
BT40-SFFB16-105-M22	16	32	105	22	34.3	50	32	115
BT40-SFFB16-120-M67	16	32	120	67	26	39	50	32	130
BT40-SFFB16-125-M42	16	32	125	42	56	36,4	50	32	135
BT40-SFFB16-135-M22	16	32	135	22	86	34.3	50	32	145
BT40-SFFB16-150-M67	16	32	150	67	56	39	50	32	160
BT40-SFFB16-155-M42	16	32	155	42	86	36,4	50	32	165
BT40-SFFB16-180-M67	16	32	180	67	86	39	50	32	190

BT40-SFFB20-95-M42	20	38	95	42	26	42.4	50	40	105
BT40-SFFB20-120-M67	20	38	120	67	26	45	50	40	130
BT40-SFFB20-125-M42	20	38	125	42	56	42.4	50	40	135
BT40-SFFB20-150-M67	20	38	150	67	56	45	50	40	160
BT40-SFFB20-155-M42	20	38	155	86	42.4	50	40	165
BT40-SFFB20-180-M67	20	38	180	67	86	45	50	40	190

BT40-SFFB25-95-M42	25	45	95	42	26	49,4	50	45	105
BT40-SFFB25-125-M42	25	45	125	42	56	49,4	53	45	135
BT40-SFFB25-155-M42	25	45	155	42	86	49,4	53	45	165

BT50-SFFB10-110-M42BT50-SFFB20-165-M67

Tamanho	D	C	L	M	L1	C1	C2	H	H
BT50-SFFB3-90-M22	3	9,5	90	22	30	11.8	26	9	145
BT50-SFFB3-110-M42	3	9,5	110	42	30	13,9	26	9	165
BT50-SFFB3-120-M22	3	9,5	120	22	60	11.8	26	9	175
BT50-SFFB3-135-M67	3	9,5	135	67	30	16.5	26	9	190
BT50-SFFB3-140-M42	3	9,5	140	42		13,9	25	9	195
BT50-SFFB3-165-M67	3	9,5	165	67	60	16.5	26	9	220

BT50-SFFB4-90-M22	4	12	90	22	30	14.3	26	12	145
BT50-SFFB4-110-M42	4	12	110	42	30	16.4	26	12	165
BT50-SFFB4-120-M22	4	12	120	22	60	14.3	25	12	175
BT50-SFFB4-135-M67	4	12	135	67	30	19	26	12	190
BT50-SFFB4-140-M42	4	12	140	42	60	16.4	26	12	195
BT50-SFFB4-165-M67	4	12	165	67	60	19	26	12	220

BT50-SFFB6-90-M22	6	14	90	22	30	16.3	36	18	145
BT50-SFFB6-110-M42	6	14	110	42	30	18,4	36	18	165
BT50-SFFB6-120-M22	6	14	120	22	60	16.3	32	18	175
BT50-SFFB6-135-M67	6	14	135	67	30	21	32	18	190
BT50-SFFB6-140-M42	6	14	140	42	60	18,4	32	18	195
BT50-SFFB6-165-M67	6	14	165	67	60	21	36	18	220

BT50-SFFB8-90-M22	8	18	90	22	30	20.3	36	24	145
BT50-SFFB8-110-M42	8	18	110	42	30	22.4	36	24	165
BT50-SFFB8-120-M22	8	18	120	22	60	20.3	32	24	175
BT50-SFFB8-135-M67	8	18	135	67	30	25	32	24	190
BT50-SFFB8-140-M42	8	18	140	42	60	22.4	32	24	195
BT50-SFFB8-165-M67	8	18	165	67	60	25	32	24	220

BT50-SFFB10-90-M22	10	22	90	22	30	24.3	36	30	145
10	22	110	42	30	26,4	36	30	165
BT50-SFFB10-120-M22	10	22	120	22	60	24.3	32	30	175
BT50-SFFB10-135-M67	10	22	135	67	30	29	36	30	190
BT50-SFFB10-140-M42	10	22	140	42	60	26,4	36	30	195
BT50-SFFB10-165-M67	10	22	165	67	60	29	36	30	220

BT50-SFFB12-90-M22	12	26	90	22	30	28,3	50	30	145
BT50-SFFB12-110-M42	12	26	110	42	30	30,4	50	30	165
BT50-SFFB12-120-M22	12	26	120	22	60	28,3	42	30	175
BT50-SFFB12-135-M67	12	26	135	67	30	33	50	30	190
BT50-SFFB12-140-M42	12	26	140	42	60	30,4	50	30	195
BT50-SFFB12-165-M67	12	26	165	67	60	33	42		220

BT50-SFFB16-90-M22	16	32	90	22	30	34.3	42	32	145
BT50-SFFB16-110-M42	16	32	110	42	30	36,4	50	32	165
BT50-SFFB16-120-M22	16	32	120	22	60	34.3	42	32	175
BT50-SFFB16-135-M67	16	32	135	67	30	39	42	32	190
BT50-SFFB16-140-M42	16	32	140	42	60	36,4	42	32	195
BT50-SFFB16-165-M67	16	32	165	67	60	39	42	32	220
BT50-SFFB16-170-M42	16	32	170	42	90	36,4	50	32	225

BT50-SFFB20-110-M42	20	38	110	42	30	42.4	50	40	165
BT50-SFFB20-135-M67	20	38	135	67	30	45	53	40	190
BT50-SFFB20-140-M42	20	38	140	42	60	42.4	50	40	195
20	38	165	67	60	45	50	40	220
BT50-SFFB20-195-M67	20	38	195	67	90	45	50	40	250

BT50-SFFB25-110-M42	25	45	110	42	30	49,4	50	45	165
BT50-SFFB25-140-M42	25	45	140	42	60	49,4	53	45	195
